Plate primary filter

  • G3/G4 Panel Air Filter
  • G3/G4 Panel Air Filter
G3/G4 Panel Air FilterG3/G4 Panel Air Filter

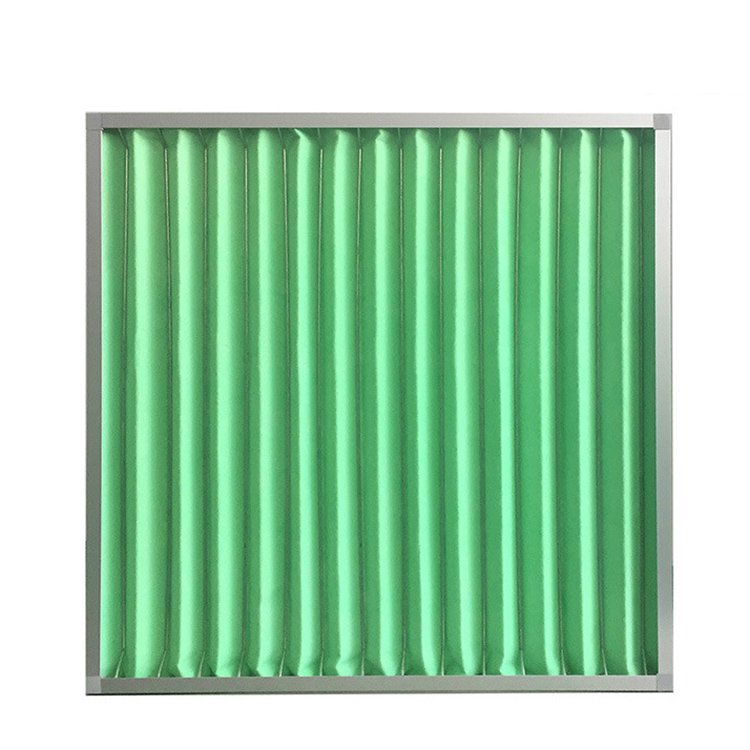

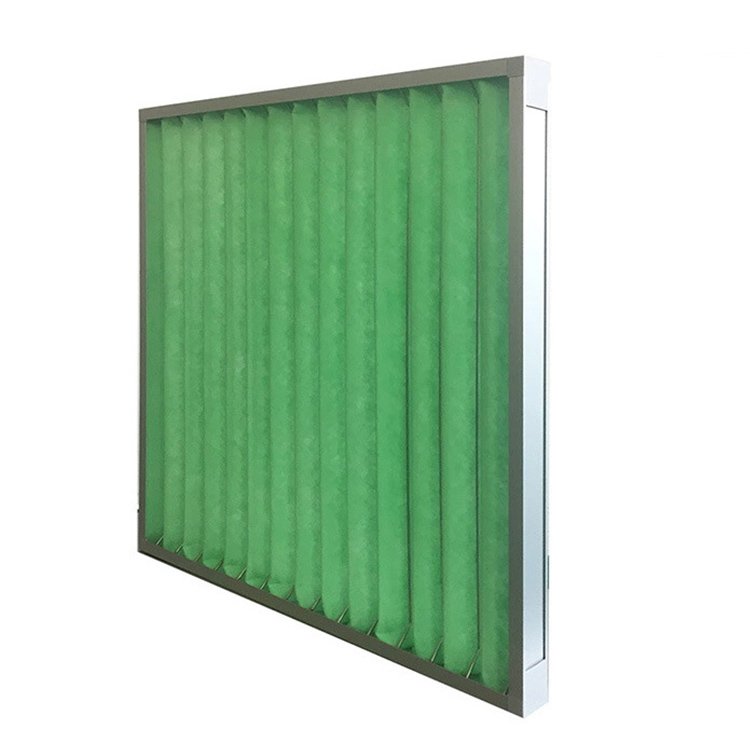

G3/G4 Panel Air Filter

  • BRAND: Chengjing Hi-tech
  • Size:Customize
  • Efficiency:35%-45%
  • Product description: G3/G4 Panel Air Filter
  • INQUIRY

At the beginning of mother wearing green white cotton air filter

Washing cotton effect at the beginning of air filter is mainly used for filtering 5 ~ 10 microns of dust particles in the air, for the central air conditioning system, clean air conditioning system of primary or secondary air filter.

一、Material: aluminum alloy frame, galvanized iron wire lash racks, filter material for high quality and durable can be washed many times in the early effect of air filter cotton, filter cotton color is white.

二、This product features:

1、Can be repeated cleaning, repeated use
2、Long service life.

3、Small resistance, large filtering area, large air volume.

4、Thickness is usually6mm、69mm、80mm、90mm、96mm Etc.

Standard specification

model

Outside Dimensions

(mm)

Rated air flow

(m3/h)

Initial resistance

(Pa)

Efficiency(class)

Model of filter media

CJ-S3-B1

295×295×69mm

1000m3/h

35~50Pa

45%

weight

G 4

Early effect filter

CJ-S3-B2

495×295×69mm

1600m3/h

CJ-S3-B3

495×495×69mm

2800m3/h

CJ-S3-B4

595×295×69mm

2000m3/h

CJ-S3-B5

595×495×69mm

3300m3/h

CJ-S3-B6

595×595×69mm

4000m3/h

According to user requirements to customize different specifications and types of filters
